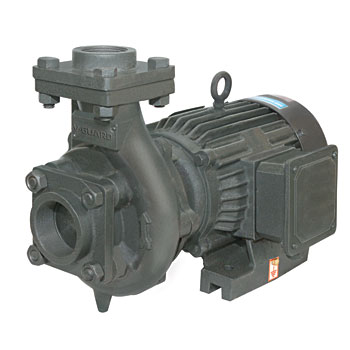

VCTBN Series ('B' CLASS )
Power Range: 1.1 kW - 15.0 kW ( 1.5 HP - 20.0 HP)
Max. Head: 76 m (249 feet)
Max. Flow Rate: 2160 LPM (118.8 m3/h)
Applications: Irrigation of farms, Agriculture use…
SALIENT FEATURES
- Rewindable Squirrel cage Electric Motor as prime mover
- Dynamically balanced Motor Shaft with Aluminium Die-casted Rotor
- Open type vibration free SKF Ball Bearings for smooth working
- Totally Enclosed Fan Cooled Motor
- Higher Operating Efficiency
- High quality Electrical grade Stamping used as Motor Core
- Super enameled Copper Winding Wire
- Rigid Cast Iron Motor Body
- Dynamically balanced Cast Iron Radial Flow Impeller
- Low maintenance cost & noise free operation
TECHNICAL SPECIFICATION
| Max. Liquid Temperature | Speed | Version | Voltage Range | Type of Duty |
|---|---|---|---|---|
| 35°C | 2880 RPM | Three Phase, 50 Hz | 300 V - 415 V | S1 (Continuous) |
